Ultra-high performance signal control equipment
Programmable multi-giga bit per second digital delay lines
Programmable RF/Microwave delay lines
Programmable precision attenuators


GigaBaudics has delivered ultra-high-performance, multi-GHz programmable delay lines, attenuators and RF switching products for over 30 years, to a variety of customers that demand performance which simply cannot be found, anywhere else. In addition to our standard products, we commonly deliver semi-custom, customer-driven designs, which comprise about 30 percent of our total business.

For ultra-wideband digital delay line and RF/microwave applications, our standard ECL/TTL-controlled products include the single-channel PDDL10 and PDDL5 digital delay lines,  the four-channel QPDDL10 and QPDDL5 digital delay lines, and the single-channel PADL6 and PADL3 and four-channel QPADL6 and QPADL3 RF delay lines.

GigaBaudics offers DC-13 GHz programmable attenuator products: the four-channel QPA13 and single-channel PA13 with configuration options and the new ultra low loss, low noise DC-8 GHz  four-channel QPA8 and and single-channel PA8 programmable attenuators. We also offer fully-custom instruments such as RF-switching arrays and switch matrices


10 Gb/s PROGRAMMABLE DIGITAL DELAY LINE - MODEL PDDL10

  • 0 to 10 Gb/s operation
  • 5 ps step size
  • 7 bit delay range
  • 40 ps rise/fall times
  • Less than 10 ps jitter, <5 ps typical
  • Adjustable input threshold
  • Differential ECL outputs
  • TTL compatible programming



5 Gb/s PROGRAMMABLE DIGITAL DELAY LINE - MODEL PDDL5

  • 0 to 5 Gb/s operation
  • 5, 10 or 20 ps step size
  • 10 bit delay range
  • 85 ps rise/fall times
  • Less than 10 ps jitter, <5 ps typical
  • Adjustable input threshold
  • Differential ECL outputs
  • High-speed programming



10 Gb/s PROGRAMMABLE DIGITAL DELAY LINE - MODEL QPDDL10

  • 0 to 10 Gb/s operation
  • Four independent channels
  • 7 bit programmable
  • 5 ps step size
  • 40 ps rise/fall times
  • Less than 10 ps jitter, 5 ps typical
  • Adjustable input threshold
  • Low hysteresis
  • High accuracy



5 Gb/s PROGRAMMABLE DIGITAL DELAY LINE - MODEL SERIES QPDDL5

  • 0 to 5 Gb/s (2.5 GHz) operation
  • Four independent channels
  • 10 bit programmable
  • 5 or 10 ps step size
  • 85 ps rise/fall times
  • Less than 10 ps jitter, 5 ps typical
  • Adjustable input threshold
  • Low hysteresis
  • High accuracy

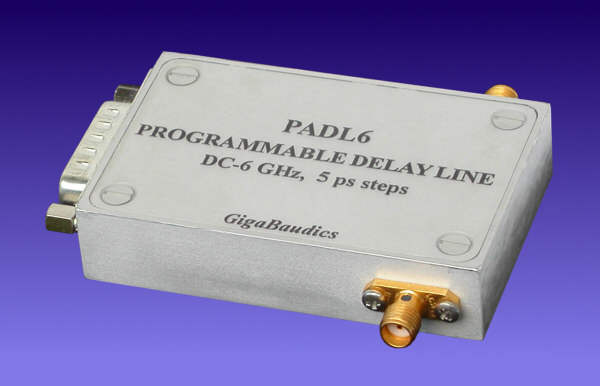

6 GHz PROGRAMMABLE DELAY LINE - MODEL PADL6

  • DC to 6 GHz bandwidth
  • Time or phase shifting
  • Passive switched-line delays
  • Precise repeatability
  • 7 Bit (128 step) range
  • TTL programming
  • 5 ps step size
  • 50 ohm matched I/O
  • Extended range option



3 GHz PROGRAMMABLE DELAY LINE - MODEL PADL3

  • DC to 3 GHz bandwidth
  • Time or phase shifting
  • Passive switched-line delays
  • Precise repeatability
  • 10 Bit (1024 step) range
  • High-speed TTL programming
  • Custom step size (5, 10 or 20 ps)
  • 50 ohm matched I/O



6 GHz, 4 CHANNEL PROGRAMMABLE DELAY LINE - MODEL SERIES QPADL6

  • DC to 6 GHz bandwidth
  • Time or phase shifting
  • 4 Independently channels
  • Precise repeatability
  • 7 Bit (128 step) range
  • Extended range option
  • TTL programming
  • 5 ps step size
  • 50 ohm matched I/O



3 GHz, 4 CHANNEL PROGRAMMABLE DELAY LINE - MODEL SERIES QPADL3

  • DC to 3 GHz bandwidth
  • Time or phase shifting
  • 4 Independently channels
  • Precise repeatability
  • 10 Bit (1024 step) range
  • High-speed TTL programming
  • Custom step size (5 or 10 ps)
  • 50 ohm matched I/O

13 GHz PROGRAMMABLE ATTENUATOR - MODEL SERIES PA13

  • DC to 13 GHz bandwidth
  • 1O Bit (1024 step) range
  • 0.0625 dB step
  • Constant phase
  • Precise repeatability
  • 50 ohm matched I/O
  • High-speed TTL control
  • Very low insertion loss option



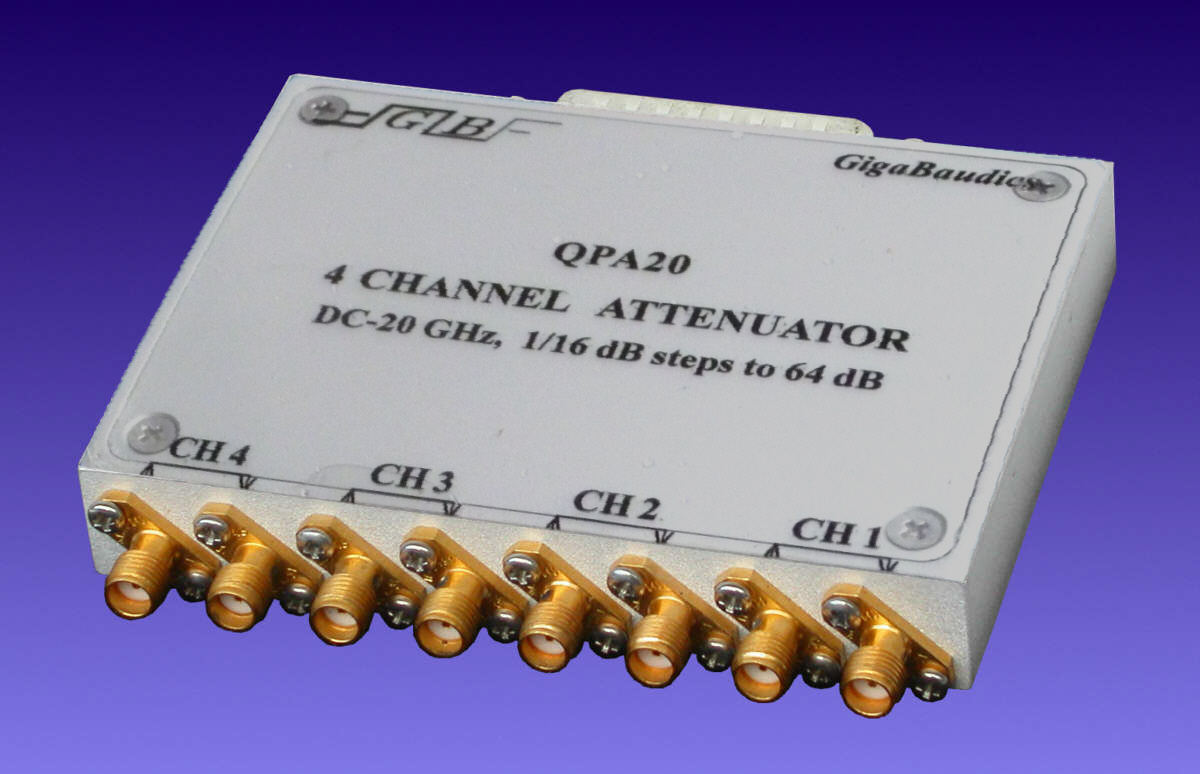

13 GHz, 4 CHANNEL PROGRAMMABLE ATTENUATOR - MODEL SERIES QPA13

  • DC to 13 GHz bandwidth
  • 1O Bit (1024 step) range
  • 4 Independent channels
  • 0.0625 dB step
  • Constant phase
  • Precise repeatability
  • 50 ohm matched I/O
  • High-speed TTL control
  • Very low insertion loss option

NEW 6, 8 GHz, 4 CHANNEL PROGRAMMABLE ATTENUATOR - MODEL SERIES QPA8, PA8

  • DC to 6, 8 GHz bandwidth
  • 10 Bit (1024 step) range
  • Very low insertion loss
  • 0625 dB step
  • Constant phase
  • Precise repeatability
  • High-speed TTL control
  • Low noise
  • High Linearity, ~50dBm IP3
  • 50 ohm matched I/O


CUSTOM RF SWITCHES AND SWITCH MATRICES

  • DC to ~4 GHz bandwidth
  • Constant phase
  • Low loss
  • Precise repeatability
  • 50 ohm matched I/O
  • High-speed TTL control

Contact us, with your specifications, for pricing and availability.

4 GHz, 4 CHANNEL PROGRAMMABLE DELAY LINE - MODEL SERIES QPADL DISCONTINUED

4 GHz PROGRAMMABLE DELAY LINE - MODEL PADL DISCONTINUED

4 GHz, 4 CHANNEL PROGRAMMABLE ATTENUATOR - MODEL SERIES QPA1 DISCONTINUED

4 GHz SINGLE CHANNEL PROGRAMMABLE ATTENUATOR - MODEL PA1 DISCONTINUED

5 Gb/s PROGRAMMABLE DIGITAL DELAY LINE - MODEL SERIES PDDL2  REPLACED BY MODEL PDDL5


At GigaBaudics, our focus has always been the delivery of 'state -of-the-art' instruments with the highest possible speed, accuracy and bandwidth. The performance of our products simply exceeds those of the best test/measurement instruments available from any other manufacturer. Our products are commonly employed as tools to provide a "bridge" between the (limited) capabilities of current test/measurement instruments and new, ultra-high performance products.

GigaBaudics is also very agile and flexible in accommodating a wide variety of customer-specific needs. We routinely modify and adapt our products to meet the specific needs of our customers, and about fifty percent of our business involves semi-custom or fully-custom-built instruments. As a small but extraordinarily capable business, our services include the ability to "ramp up" to production quantities, very quickly.

DESIGN SERVICES


GigaBaudics is fully equipped with circuit board and IC design and layout tools, assembly wire bonders, circuit board assembly stations, test and measurement equipment for design, manufacture and test of digital, analog and microwave systems.


WARRANTY- Terms for all orders


Contact GigaBaudics Co. at phone/FAX: (805) 687-5934

Please use e-ail for any correspondences, either technical or administrative, at address postman@gigabaudics.com

    GigaBaudics    5266 Hollister Ave. Ste 221 Goleta, CA  93111 (805) 687-5934
